Overview

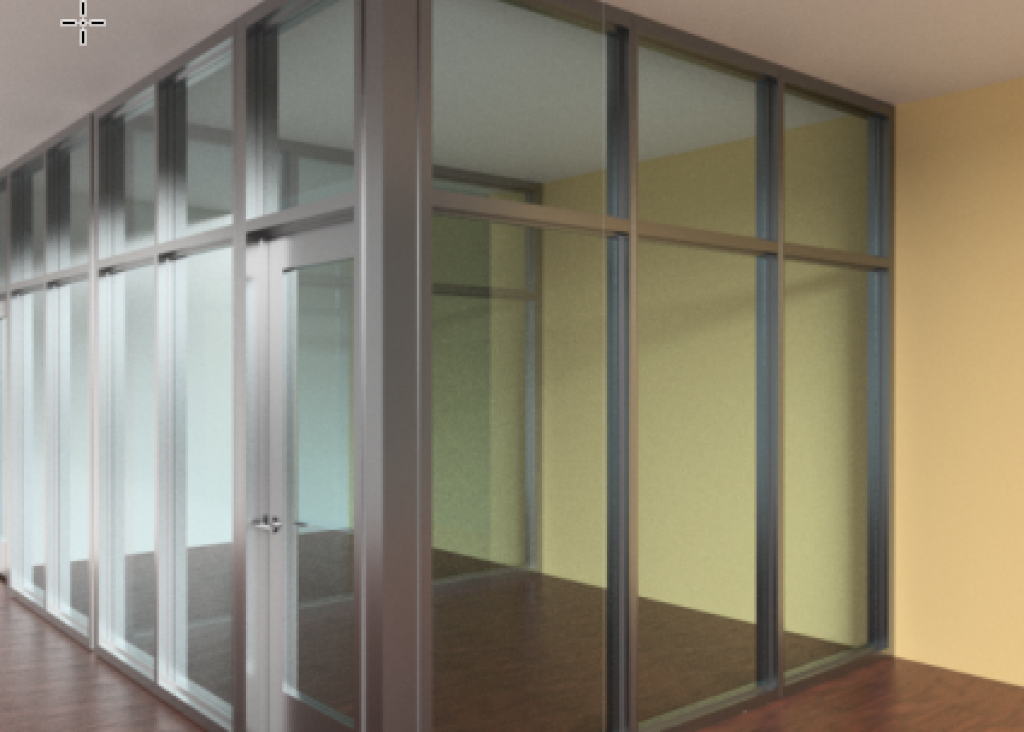

Speed View Speedwall is a pre-glazed aluminum framing system that utilizes mounting tracks as well as a split vertical mullion to deliver an easy to install, fully customizable, and extremely attractive solution for adding interior vision and doorway systems to pre-finished spaces. The Speedwall system is designed to allow all of the panels to be disassembled, relocated and re-used.  Made in the U.S.A., Speedwall checks off all your interior framing needs.

Features and Benefits

	Each panel is pre-glazed so installation is quick and easy and eliminates the need for specialty trades
	An applied sash allows for each panel to be fully customizable with any infill material desired up to 3 7/8" thick
	Tracks that are mounted to the ceiling, walls, and floor, provide an easy installation process and allows the panels to be re-used
	Set screws in the sill track secure panels in place and reduce the need for anchors in the finish materials
	Frames are shipped with protective covering to prevent damage during installation and continued construction
	With a mounting track that is 5" wide the Speedwall mullions have a 2" wide profile and are 5 9/16" deep

Installation

For complete installation instructions, refer to Speed View specifications and details, or visit www.speedviewusa.com.

Finishes

	Anodized - Clear, Black
	Powder Coat - See Color Chart

Quality Assurance

	Aluminum meets ASTM B221
	STC rating of 29 with 1/4" glass
	STC of 40+ achievable with certain glass configuration

Technical Services

Engineering and shop drawings, as well as long-form specifications and CAD details, are available from Speed View. Product samples, detail sheets, color chips, and color charts are also available for submittal packages. For personal assistance with questions or submittals, contact Speed View or your local independent sales representative long-form hips, questions or representative.
